TANDEX ENGINEERING & SERVICES P. LTD

CHEMICAL CLEANING
Thermal power plants using fossil fuel (coal, lignite, etc.) generate steam which drives a turbine coupled to an electric generator.
STEAM BLOWING
The steam driving a turbine must be extremely clean, i.e. there should be no particulate matter which can impact and damage the turbine blades.
TURBINE OIL FLUSHING
Turbines are shaft mounted on heavy-duty bearings and need continuous oil lubrication. Before the turbine can be put into operation, the lube-oil circuit has to be completely cleaned of all contaminants to prevent damage to the shaft and bearings.

< >

Services For Thermal Power Plants

The bouquet of services offered by the company is focused on cleaning of equipment and connecting pipelines to render them serviceable, safe and to improve operational efficiency. These services are executed on a project-to-project basis and require the use of chemical mixing and dosing tanks, agitators, hydro-jets, pumps, motors, pipelines, valves, etc. which are erected for the specific job being carried out. All the equipment, auxiliaries, chemicals and consumables are mobilized to the job site and erected according to the pre-engineered plan. On completion of the job work, the equipment is dismantled and transported back to the company’s storage yard. For facilitation of storage and transportation as well as enabling quick turnaround between jobs, the equipments used are held in standard shipping containers. Besides working with Steam Generators, Tandex has also provided customized chemical cleaning services for many petrochemical projects such as Kawasaki (offshore modules), Air Liquide of France, Lurgi (Petronas MegaMethanol), etc. Tandex leverages technical support arrangements with a German consulting company having over 45 years of experience in Chemical Cleaning, Steam Blowing, etc. for the best known names in power plants all over the world.

CHEMICAL CLEANING
STEAM BLOWING
TURBINE OIL FLUSHING


Thermal power plants using fossil fuel (coal, lignite, etc.) generate steam which drives a turbine coupled to an electric generator. The turbine in combined-cycle (CC) power plants will be primarily driven by ignited gaseous fuel and the spent hot gas is used to generate steam (HRSG – Heat Recovery Steam Generator) which drives another turbine or another section of the same turbine. In both cases, the boiler (steam generator) has to transfer heat from the burning fuel to water to generate high-pressure steam. In order to maximize the heat transfer and ensure that there no “hot spots” in the boiler, the metal surface has to be perfectly clean, i.e. free of oil, grease, rust, weld slag and other contaminants introduced into the boiler during construction or due to chemical reaction of the boiler metal with its environment.
Small boilers may be cleaned mechanically, say by wire-brushing, but larger boilers are cleaned more effectively using chemical means. Alkalis are used to remove oil, grease and any organic residues. Acids are used to remove oxides (rust, mill-scale), chlorides and silica. Chelating agents such as EDTA, NTA are also used instead of acids. High velocity flushing with de-ionized water is carried out before and after each stage to remove all loose debris and chemical residues. After chemical cleaning, the boiler metal must be “preserved” to prevent re-oxidation. Tandex has the capability and the experience of using different chemistries for achieving a high degree of cleaning in the most cost-effective manner. Tandex would like to recommend state-of-the-art chemical cleaning procedures which can give superior results in less time and at substantially reduced costs.
Tandex offers chemical cleaning services which include: CHEMICAL CLEANING of Boilers including Steam Lines STEAM BLOWING CHEMICAL CLEANING of Process Equipment CHEMICAL CLEANING of Process Piping including pigging FIN-FAN CLEANING HEAT EXCHANGER CLEANING OIL FLUSHING METAL LAUNDRY

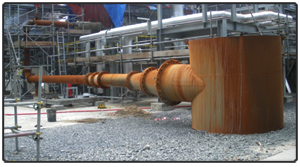

The steam driving a turbine must be extremely clean, i.e. there should be no particulate matter which can impact and damage the turbine blades. The steam generated in a boiler and passing through other sections such as the superheater, reheaters, etc. can pick up loose debris, scale etc. which can cause severe damage to the turbine. Even if the boiler has been chemically cleaned, it is still necessary to fire up the boiler and blow the steam to the atmosphere (using specially designed arrangements) to ensure that the desired levels of steam purity are achieved.

Tandex has engineered and executed steam-blowing for large power plants using techniques that are faster and more economical than conventional methods facilitating quick-start of power generation.

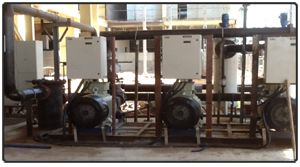

Turbines are shaft mounted on heavy-duty bearings and need continuous oil lubrication. Before the turbine can be put into operation, the lube-oil circuit has to be completely cleaned of all contaminants to prevent damage to the shaft and bearings. This is carried out by re-circulating the lube-oil through a temporary circuit to remove all grit and scale. The oil-flushing operation may take several days to complete to ensure that the particulate matter concentration in the oil is reduced to less than the pre-set levels. Tandex provides oil flushing units equipped with heating arrangements and filter media of required dimensions to carry out flushing of oil for turbines, hydraulic systems, etc.
Tandex has the experience and expertise to: DESIGN cleaning circuits SUPPLY and ERECT appropriate temporary equipment SUPPLY necessary chemicals OPERATE the cleaning process DEMONSTRATE the efficacy of the cleaning process TREAT EFFLUENT to meet environmental standards
